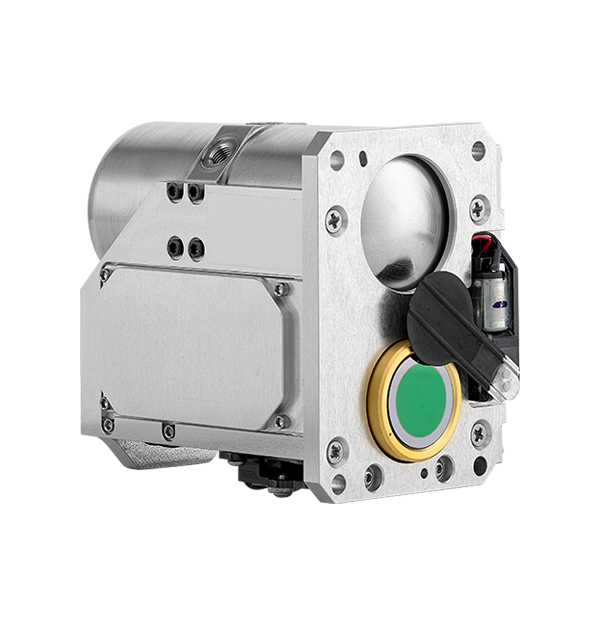

The Neutrino SWaP Series is simply the best technical solution available. With nearly off-the-shelf delivery, industry-leading two-year warranty, real price competitiveness and well-known product support and product reliability, it also offers the lowest risk solution. The Neutrino SWaP is an OEM camera module that is intended to be integrated into a higher level system.
Multiple Resolution SWAP Optimized MWIR Camera Cores
VGA/15 µm and SXGA/8 µm HOT FPA camera modules in a SWaP-optimized envelope offer low-power consumption, rugged construction, and a wide operating temperature range.
Designed for Integrators
Small, light, and powerful, the Neutrino SWaP Series camera modules come with common interfaces and support documentation/accessories to shorten time-to-market and reduce project risk.
Performance, Reliability, and Support
The Neutrino SWaP Series cameras offer best-in-class image quality, an industry-leading two-year warranty, superior SWaP performance, high reliability, long lifetime, and come with Teledyne FLIR’s well-known product support.
Specifications
Hardware
- Part Number
- 425-1280130-1PAAX
Imaging & Optical
- Cold Shield Height
- 19.4 mm from FPA
- Color Palettes
- Yes, RGB888 mode
- Cooler MTTF
- Up to 27,000 Hours
- Detector Type
- HOT
- Digital Zoom
- Yes, up to 8x (digital zoom)
- Discrete I/O Controls Available
- Yes, Three available
- f-number
- f/4, f/3 & f/2.5 options
- FOV - Horizontal
- Lensless
- FPA - Digital Video Display Format
- 1280 × 1024
- Frame Rate
- up to 60 Hz
- Image Correction
- 2-point (offset and gain) and bad pixel replacement
- Image Optimization
- Linear, Histogram Equalization, DDE
- Invert/Revert
- Yes
- Local Processing and Contrast Enhancement (LAP/LCE)
- Local Area Processed Dynamic Contrast Expansion with user adjustable background level and foreground boost
- Optical Continuous Zoom
- Yes, up to 8x (digital zoom)
- Parallel (24-bit/16-bit/8-bit)
- Yes
- Pixel Pitch
- 8 µm
- Resolution
- 1280 × 1024
- Sensitivity [NEdT]
- < 38mK (50% well fill at TBB=30°C flood mode)
- Sensor Technology
- HOT MWIR
- Spectral Band
- 3.4 to 5.1 µm Standard
- Symbology
- Yes, RGB888 mode
- Zoom and Focus Controls
- Yes
Connections & Communications
- Communication Protocol
- UART (115.2K baud)
- External Sync Input/Output
- Master or Slave
- Primary Electrical Connector
- 80-pin SAMTEC, ST4-40-2.50-L-D-P-TR
- USB
- Yes
- User Configurability via SDK & GUI
- Yes
FPA Control
- Direct Injection Snapshot Prog operation
- Yes
- Programmable Integration Time
- Yes (.01ms - 16ms) at 60 Hz
- ROIC
- ISC1601
- ROIC Modes
- Free Run, Readout Priority, & Integration Priority
- Well Capacity
- 2.6 × 10⁶ electrons
Electrical
- Input Voltage
- +5.0 VDC Camera, +12 VDC Cryocooler
- Power Consumption
- <12 W cooldown, <8 W steady state @ 23°C
- Video Output Channel
- Parallel CMOS and CameraLink or HDMI.
Mechanical
- Size (L x W x H)
- 7.9 cm × 5.3 cm × 6.1 cm (3.1 × 2.1 × 2.4 in)
- Weight
- < 420 grams (<15 oz)
Environmental & Approvals
- Humidity
- Non-condensing between 5% - 95%
- Non-Operating Temperature Range
- -57 °C to +80 °C (-70.6 °F to +176 °F)
- Operating Temperature Range
- -40 °C to +71 °C (-40 °F to +160 °F)
- Operational Altitude
- ~12km (40,000 ft)
- Shock
- Lateral 190 Grms @ .55 ms
Vertical 320 Grms @ .55 ms
Axial 550 Grms @ .8 ms
- Vibration
- 5.8 Grms, 3-axis, 1hr each
Export Designations
- ECCN Code
- 6A003.b.4.a
