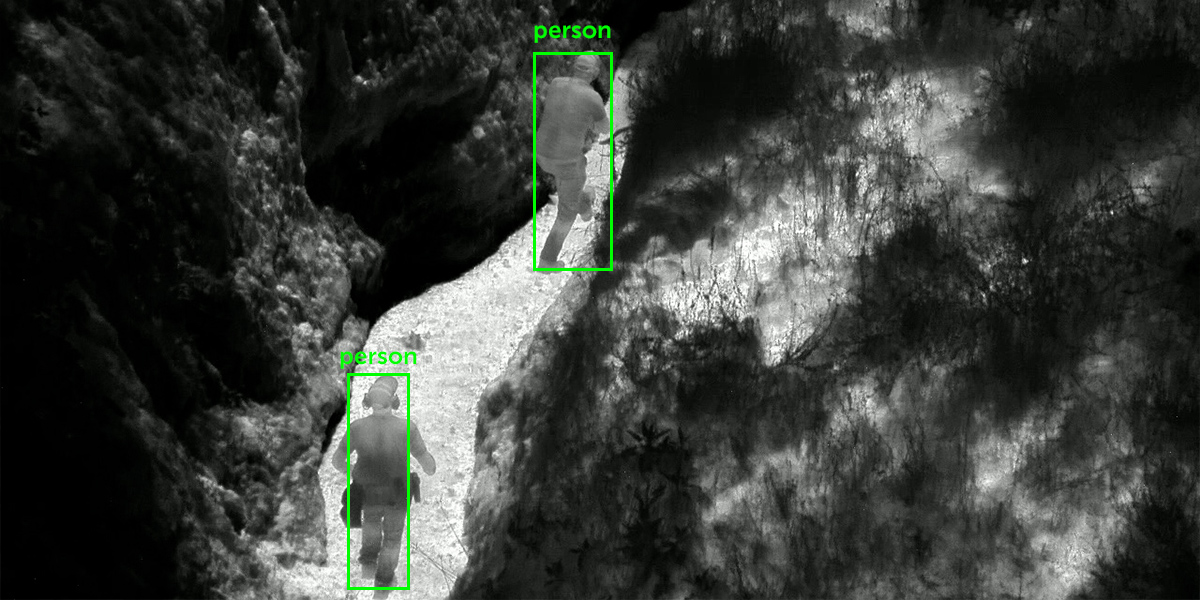

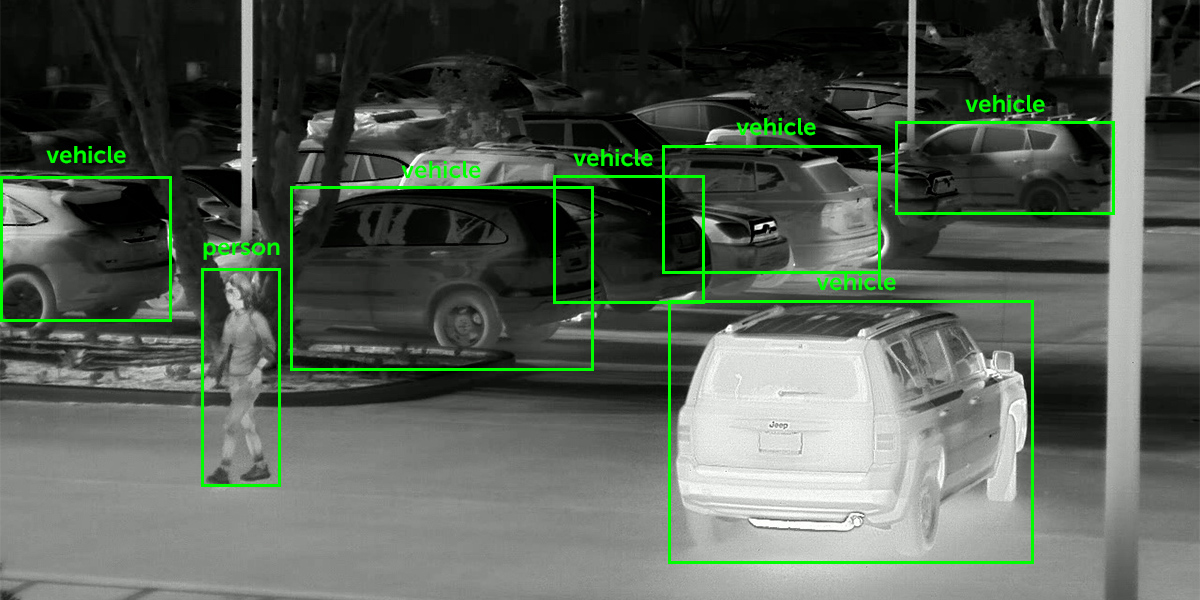

Boson SX8 CZ, 15-75 mm

Performance

Thermal Spectral Range

Longwave infrared; 7.5 µm – 14 µm

Radiometry

Temperature Accuracy

±5° C accuracy or less, depending upon operating conditions.

Temperature Measurement

No

Imaging & Optical

Boresight Drift Through Zoom

< 0.10mm

Digital Zoom

8x

Distortion

WFOV <7%; NFOV < 3%

Focal Length

NFOV = 75mm +4% / -0%; WFOV = 15mm +0% / -4%.

Frame Rate

60Hz default; 30 Hz runtime selectable

Image Orientation

Adjustable (vertical flip and/or horizontal flip)

Minimum Focus Distance

NFOV > 18M
WFOV > 3M

Non-Uniformity Correction (NUC)

Factory calibrated; updated FFCs with FLIR’s Silent Shutterless NUC (SSN™), Standard configuration also includes physical shutter

Optical Continuous Zoom

5.35x

Parfocality

At 20°C the lens shall stay in focus thru zoom within 1/4-wave at 10.6um

Pixel Pitch

8 µm

Relative Illumination

NFOV = 70%
WFOV = 96%

Resolution

1280 x 1024

Scene Dynamic Range

to 140 °C (high gain)

Sensitivity [NEdT]

<35 mK

Symbol overlay

Re-writable each frame; alpha blending for translucent overlay

Time to Focus

< 0.5 sec

Time to Zoom

< 1.5 sec

Connections & Communications

Peripheral Channels

I2C, SPI, SDIO

Serial Communication

The following serial communications shall be set: RS232, 38400 baud, 1 stop bit, 8 data bits, no parity

Electrical

Power Supply

Nominal voltage 12V ± 1V

Mechanical

Size (L x W x H)

110 (L) x 84.3 (w) x 84.3 (h) mm

Weight

530g

Environmental & Approvals

Design and Construction

Lens assembly to meet MIL-STD-1472 and MIL-HDBK-1686

DLC Option

With DLC front coating, lens to withstand Humidity, Severe Abrasion, and Salt Fog Exposure

ESS Thermal

Lens assembly to be subjected to -35 °C to +70 °C temperature extremes with a maximum of 5 deg/min ramp rate and a minimum dwell of 60min at each temperature extreme

ESS Vibration

Random vibration, from 10 Hz to 500 Hz with the following vibration profile along the optical axis for a minimum of 10 minutes:
at 10 Hz, 0.01 G2/Hz
at 50 Hz, 0.01 G2/Hz
at 80 Hz, 0.04 G2/Hz
at 350 Hz, 0.04 G2/Hz
at 500 Hz, 0.01 G2/Hz

Focus Over Temperature

Maintain focus from -35 °C to 70 °C

IP Rating [At Front of Lens]

IP67

Non-Operating Temperature Range

-40 °C to 80 °C (-40 °F to 176 °F)

Operating Temperature Range

-35 °C to 70 °C (-31 °F to 158 °F)

Operational Altitude

12 km (max altitude of a commercial airliner or airborne platform)

Shock

9G with 11msec half-sine pulse, minimum 3 pulses for each of 3 axes

Solar protection

Lens attenuates solar energy below pass band.
