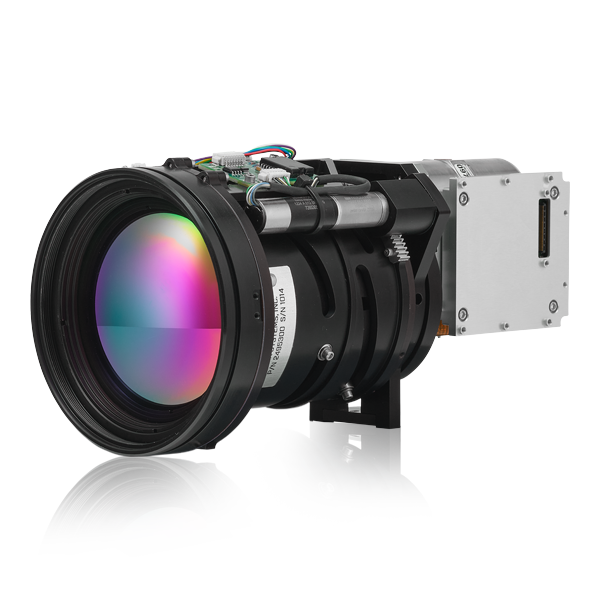

The Neutrino IS series reduces development and manufacturing risks while accelerating time-to-market. Featuring cutting-edge High Operating Temperature (HOT) FPAs, long-life and low-vibration linear coolers, standardized camera interfaces, and fully athermalized lenses, it represents a best-in-class solution. Each camera module and lens are co-designed for seamless integration, ensuring optimal performance that cannot be matched by mixing components from different sources.
The Teledyne FLIR Neutrino IS series is simply the most advanced technical solution available. With near off-the-shelf availability, an industry-leading two-year warranty, competitive pricing, and a reputation for reliable support, it offers the lowest-risk path to integration into higher-level systems.
Multiple MWIR Imaging Solutions
Multiple configurations from one manufacturer simplifies product development and production, providing higher value and lower risk.
Seamless Opto-Mechanical Integration
Cameras and lenses designed for each other for optimum performance and compatibility.
Market Leading MWIR CZ Optics and Cameras
World class performance, industry-leading two-year warranty, and affordable MWIR solutions from the market leader.
Specifications
Hardware
- Part Number
- 425-0059-00
Imaging & Optical
- Cold Shield Height
- 19.4 mm from FPA
- Color Palettes
- Yes
- Cooler MTTF
- Up to 27,000 Hours
- Detection Recognition and Identification (DRI)
- D = 20.6 km, R = 8.9 km, I = 6.9 km
The ranges at which there is a 50% probability of achieving the task for the V50 measured task of difficulties of 2.0 (detection), 9.0 (recognition), and 13.0 (identification).
- Detector Type
- HOT
- Digital Zoom
- Yes, up to 8x (digital zoom)
- Discrete I/O Controls Available
- None
- EFL_Zoom Range [mm]
- 15 to 300 mm (± 5%) compact, continuous zoom lens
- f-number
- f/4
- Focus
- Motorized, Focus to Specified Distance, Focus to Infinity, Commanded / Continuous Autofocus
- FOV - Horizontal
- 1.9° to 38° (athermalized)
- FPA - Digital Video Display Format
- 1280 x 1024
- Frame Rate
- up to 60 Hz
- HFOV
- 1.9°
- IFOV (mrad)
- 0.02666666666667
- Image Correction
- 2-point (offset and gain) and bad pixel replacement
- Image Optimization
- Linear, Histogram Equalization, DDE
- Invert/Revert
- Yes
- Lens Type
- 20x Continuous Zoom
Maintain Focus Distance Through Zoom
- Local Processing and Contrast Enhancement (LAP/LCE)
- Local Area Processed Dynamic Contrast Expansion with user adjustable background level and foreground boost
- Optical Continuous Zoom
- Yes
- Pixel Pitch
- 8 µm
- Polarity Control [black hot & white hot]
- Yes
- Resolution
- 1280 x 1024 HOT MWIR
- Sensitivity [NEdT]
- <35mK
- Special Features
- Active athermalization and auto focus capable
- Spectral Band
- 3.4 - 5.1 µm standard
- Symbology
- Yes
- Zoom and Focus Controls
- Yes
Connections & Communications
- Analog Video Output
- No
- Communication Protocol
- UART (115.2K baud) Camera
RS-232, nominal 38400 Baud (lens)
- Digital Output Format
- Yes, accessory board required
- Primary Electrical Connector
- 80-pin SAMTEC, ST4-40-2.50-L-D-P-TR
- RS-232 Compatible Communication
- Yes
- User Configurability via SDK & GUI
- Yes, Camera only
FPA Control
- Direct Injection Snapshot Prog operation
- Yes
- Programmable Integration Time
- Yes (0.01 ms - 16.6 ms)
- ROIC
- ISC1601
- ROIC Modes
- Free run, readout & integration priority
Electrical
- Input Voltage
- 5.0 - 12.0 VDC (camera), 12 VDC (cryocooler), 12 VDC (lens)
- Power Consumption
- Camera Only
<8.0 W (camera/cooler) steady state
<1.92 W (lens) steady state
<12.0 W (camera/cooler) peak power
<3.6 W (lens) peak power
Camera & Lens
9.0W (camera + cooler) + 2.4W (lens) = <11.4W total at room temperature
- Video Output Channel
- CMOS (16-bit, 16-bit color encoded YCbCr, 8-bit)
Mechanical
- Size (L x W x H)
- 19.25 x 9.91 x 9.96 cm (7.58 × 3.90 × 3.92 in)
- Weight
- 1337 grams
Environmental & Approvals
- Humidity
- 5% to 95% non-condensing
- Non-Operating Temperature Range
- -57 °C to + 80 °C (-70 °F to + 176 °F)
- Operating Temperature Range
- -30 °C to +70 °C, (-22 °F to +158 °F) limited by the lens
- Operational Altitude
- 12 km (40,000 ft) altitude equivalent
- Shock
- 40g w/11ms half-sine pulse, 3-axis
- Vibration
- 5.8 grms, 3-axis, 1hr each
Export Designations
- ECCN Code
- 6A003.b.4.a
