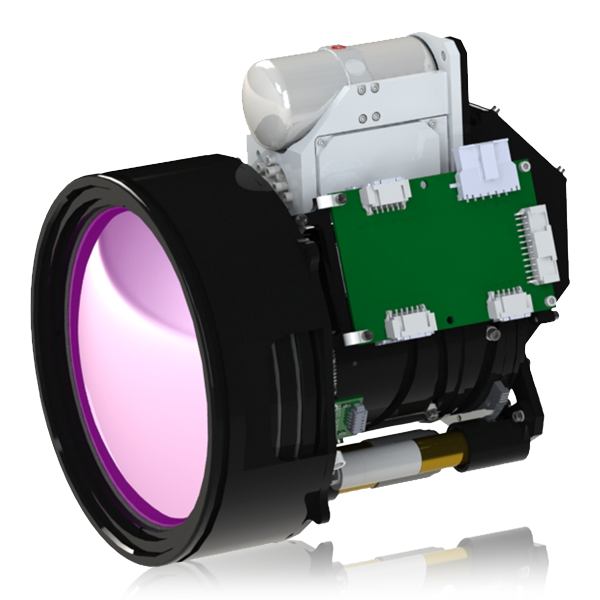

The Neutrino IS series reduces development and manufacturing risks while accelerating time-to-market. Featuring cutting-edge High Operating Temperature (HOT) FPAs, long-life and low-vibration linear coolers, standardized camera interfaces, and fully athermalized lenses, it represents a best-in-class solution. Each camera module and lens are co-designed for seamless integration, ensuring optimal performance that cannot be matched by mixing components from different sources.
The Teledyne FLIR Neutrino IS series is simply the most advanced technical solution available. With near off-the-shelf availability, an industry-leading two-year warranty, competitive pricing, and a reputation for reliable support, it offers the lowest-risk path to integration into higher-level systems.
Multiple MWIR Imaging Solutions
Multiple configurations from one manufacturer simplifies product development and production, providing higher value and lower risk.
Seamless Opto-Mechanical Integration
Cameras and lenses designed for each other for optimum performance and compatibility.
Market Leading MWIR CZ Optics and Cameras
World class performance, industry-leading two-year warranty, and affordable MWIR solutions from the market leader.
Specifications
Hardware
- Part Number
- 425-0058-00
Imaging & Optical
- Cold Shield Height
- 19.7 mm from FPA
- Color Palettes
- Yes
- Cooler MTTF
- Up to 27,000 Hours
- Detector Type
- HOT
- Digital Zoom
- Yes, up to 8x (digital zoom)
- Discrete I/O Controls Available
- None
- EFL_Zoom Range [mm]
- 30 to 600 mm (± 5%) compact, continuous zoom lens
- f-number
- f/5.5
- Focus
- Motorized, Focus to Specified Distance, Focus to Infinity
- FOV - Horizontal
- 0.9° to 18.2° (athermalized)
- FPA - Digital Video Display Format
- 640 × 512
- Frame Rate
- up to 60 Hz
- HFOV
- 0.9°
- IFOV (mrad)
- 0.025
- Image Correction
- 2-point (offset and gain) and bad pixel replacement
- Image Optimization
- Linear, Histogram Equalization, DDE
- Invert/Revert
- Yes
- Lens Type
- 20x Continuous Zoom
Maintain Focus Distance Through Zoom
- Optical Continuous Zoom
- Yes
- Pixel Pitch
- 15 µm
- Polarity Control [black hot & white hot]
- No
- Resolution
- 640 x 512 HOT MWIR
- Sensitivity [NEdT]
- <35 mK
- Special Features
- Active athermalization and auto focus capable
- Spectral Band
- 3.4 - 5.1 µm standard
- Symbology
- Yes
- Zoom and Focus Controls
- Yes
Connections & Communications
- Analog Video Output
- Yes, accessory board required
- Communication Protocol
- USB or UART (camera)
RS-232, nominal 38400 Baud (lens)
- Digital Output Format
- Yes, accessory board required
- Primary Electrical Connector
- 80-pin Hirose (camera), 4-pin Molex (cooler), 6-pin Molex (lens)
- RS-232 Compatible Communication
- RS-232, Nominal 38400 Baud
- User Configurability via SDK & GUI
- Yes, Camera only.
FPA Control
- Direct Injection Snapshot Prog operation
- Yes
- Programmable Integration Time
- Yes (0.01 ms - 16.6 ms)
- ROIC
- ISC0403
- ROIC Modes
- Free run, readout & integration priority
Electrical
- Input Voltage
- Camera Only
3.3 VDC (camera), 12 VDC (cooler), 12 VDC (lens)
Camera & Lens
4.75 - 6.0 VDC (camera), 9 - 35 VDC (cryocooler)
- Power Consumption
- Camera Only
<4.5 W (camera/cooler) steady state
<1.92 W (lens) steady state
<12.0 W (camera/cooler) peak power
<3.6 W (lens) peak power
Camera & Lens
<6.5 W Steady State at room temperature
- Video Output Channel
- CMOS (16-bit, 16-bit color encoded YCbCr, 8-bit)
Mechanical
- Size (L x W x H)
- 16.9 × 13.2 × 15.0 cm (6.6 × 5.2 × 5.9 in)
- Weight
- 1980 grams
Environmental & Approvals
- Humidity
- 5% to 95% non-condensing
- Non-Operating Temperature Range
- -57 °C to + 80 °C (-70 °F to + 176 °F)
- Operating Temperature Range
- -20 °C to 70 °C, (-4 °F to 158 °F)
- Operational Altitude
- 12km altitude equivalent
- Shock
- 40 grams w/11ms half-sine pulse, 3-axis
- Vibration
- 5.8 grms, 3-axis, 1hr each
Export Designations
- ECCN Code
- 6A003.b.4.a
